HTC8632A
Description
The HTC8631A (single), HTC8632A (dual) and HTC8634A (quad) are low noise, low
voltage, and micro power operational amplifiers. With an excellent bandwidth of 6.5MHz, a
slew rate of 4V/μs, and a quiescent current of 480μA per amplifier at 5V, the HTC863xA
family can be designed into a wide range of applications.
The HTC863xA op-amps are designed to provide optimal performance in low voltage
and low noise systems. The input common-mode voltage range includes ground, and the
maximum input offset voltage are 4.2mV. These parts provide rail-to-rail output swing into
heavy loads. The HTC863xA family is specified for single or dual power supplies of +2.1V to +5.5V. All models are specified over the extended industrial temperature range of −40℃ to +125℃.
The HTC8631A is available in 5-lead SC70 and SOT-23 packages. The HTC8632A is
available in 8-lead MSOP, DFN2*2, TSSOP and SOP packages. The HTC8634A is available in 14-lead TSSOP and SOP packages.
Features
High Slew Rate: 4V/µs
Wide Bandwidth: 6.5MHz
Low Power: 480μA per Amplifier Supply Current
Settling Time to 0.1% with 2V Step: 1 μs
Low Noise: 20 nV/√Hz@10kHz
High Gains of 103 dB for Active Filters and Gain Stages
Low Offset Voltage: 4.2 mV Maximum
Unit Gain Stable
Rail-to-Rail Input and Output
Input Voltage Range: -0.1V to +5.1V at 5V Supply
Operating Power Supply: +2.1V to +5.5V
Operating Temperature Range: -40℃ to +125℃

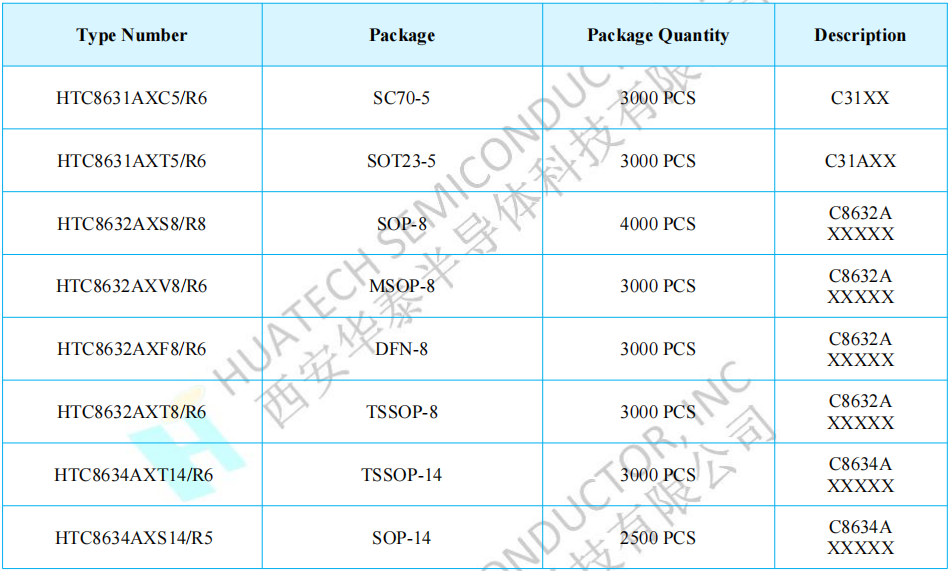

Ordering
